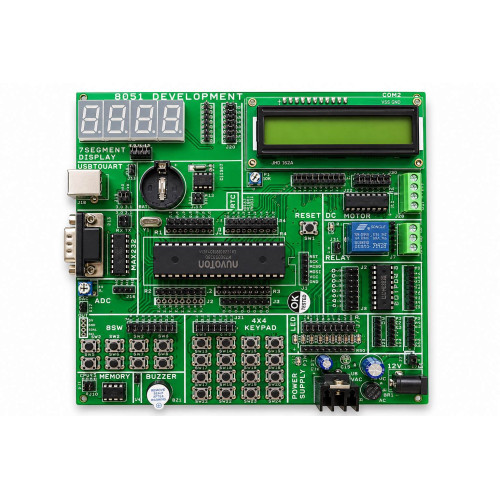

8051 Development Board – Nuvoton W78E052DDG (Bootloader Based, No Programmer Required)

A complete all-in-one 8051 trainer and prototyping board built around the Nuvoton W78E052DDG microcontroller. Program it directly from your PC through the onboard USB-to-UART converter – just download your HEX file using the built-in bootloader. No external programmer or burner is required. Every standard interfacing experiment – LCD, 7-segment, keypad, motor, relay, ADC, RTC, EEPROM – is already on the board.

Key Highlights

No programmer needed – onboard bootloader, download HEX file via USB-to-UART
Nuvoton W78E052DDG – modern, fast 8051-compatible MCU in 40-pin socket
19 onboard peripheral blocks covering the full 8051 lab syllabus
Dual serial: USB-to-UART and RS-232 (MAX232 + DB9)
ISP header provided additionally for AT89Sxx series chips
Flexible power: AC or 12V DC input with onboard 5V regulation
Every board individually tested before dispatch

About the Nuvoton W78E052DDG Chip

The W78E052DDG is Nuvoton’s drop-in upgrade for the classic 8051/AT89C52. It runs the same MCS-51 instruction set, so all your existing 8051 code, textbooks and Keil projects work without any change – but it adds modern conveniences:

8 KB In-System Programmable Flash + 256 bytes RAM, plus 2 KB auxiliary LDROM where the serial bootloader resides
Built-in bootloader support: the chip can re-program its own flash through the UART. This is exactly what this board uses – connect USB, run the Nuvoton ISP download tool on your PC, and flash your HEX file in seconds. No chip removal, no burner, no high-voltage programmer.
Wide operating range: 2.4V–5.5V operation, up to 40 MHz clock capability (board fitted with 11.0592 MHz crystal for accurate standard baud rates)
Standard 8051 peripherals: 4 × 8-bit I/O ports (32 GPIO), 3 × 16-bit timers/counters, full-duplex UART, 8 interrupt sources with 2 priority levels
40-pin DIP package in a socket – pin-to-pin compatible with AT89C52/AT89S52, so the chip can be swapped easily if ever needed

How You Program It

Method	For Which Chip	What You Need
USB-to-UART bootloader (recommended)	Nuvoton W78E052DDG (supplied)	Only a USB cable + free Nuvoton ISP download tool. Compile in Keil/SDCC, download the HEX file directly. No programmer hardware.
ISP header (J1)	AT89S51 / AT89S52 (optional)	If you prefer Atmel AT89Sxx chips, the 6-pin ISP header (RST, SCK, MISO, MOSI, VCC, GND) is provided for a USBasp-type programmer.

Onboard Blocks Explained

Block	Description
7-Segment Display	4-digit multiplexed display for counters, clocks and timer experiments
16x2 LCD (JHD162A)	Character LCD with contrast trimpot – 4-bit/8-bit parallel interfacing
USB to UART	USB-B port for HEX file download (bootloader) and PC serial communication
MAX232 + DB9	RS-232 level shifter and 9-pin COM port for legacy serial devices
RTC with Battery	Real-time clock with 32.768 kHz crystal and CR2032 backup – I2C timekeeping
ADC Block	Analog-to-digital converter with trimpot input and DAC output for sensor reading
8 Switches (8SW)	8 tactile push buttons for digital input and debouncing practice
4x4 Keypad	16-key matrix for row/column keypad scanning technique
LED Block	8 LEDs for GPIO output, patterns and status indication
DC Motor Driver	L293D driver with screw terminals – direction and PWM speed control
Relay	12V relay with screw-terminal output for switching high-power loads
ULN2803 Output	8-channel Darlington driver for stepper motors, relays and lamps
EEPROM Memory	Socketed 24Cxx I2C EEPROM for non-volatile data storage experiments
Buzzer	Piezo buzzer for alarms and tone generation using timers
Power Supply	Bridge rectifier + 7805 regulator on heatsink; accepts AC or 12V DC input

Technical Specifications

Microcontroller	Nuvoton W78E052DDG (8051-compatible, 40-pin DIP, socketed)
Flash / RAM	8 KB ISP Flash / 256 bytes RAM
Crystal	11.0592 MHz (accurate standard baud rates)
Programming	Bootloader via USB-to-UART (no programmer needed); ISP header for AT89Sxx
GPIO	32 pins (Ports P0–P3) on headers
Power Input	7–12V DC barrel jack or AC input, onboard 5V regulation
Software	Keil µVision (C51), SDCC, 8051 assembly; Nuvoton ISP download tool

Ideal For

Engineering students (ECE / EEE / CS), polytechnic and diploma labs, electronics hobbyists, training institutes, and engineers who want a quick 8051 prototyping platform with zero extra hardware to buy.
