GSM Based motor Control - Model 1 -  Control Your Pump Anywhere Using GSM Network!

Effortlessly manage your pump with GSM-based controls. Works with all SIM networks except Jio.

Key Features:

• Remote Control: Turn your pump ON or OFF with simple SMS commands from your registered mobile number.
• Store Up to 9 Numbers: Only authorized users can control the pump.
• IVRS Support: Dial and interact with an automated voice system to control and check pump status.

1. Phone Number Management: -   ( Master NO Only  recives - Power On / Failure messages )

   • Add numbers with commands #1STNxxxxxxxxxx to #9STNxxxxxxxxxx.
   • Store only master number using #C.  = #1STNxxxxxxxxxxx  (  #C  AND  #1STNxxxxxxxxxxx  Both commands store  in ID1 as master NO    )
   • View stored numbers with #SPN.

• Command-Based Controls:

  1. #1 – Pump ON
  2. #2 – Pump OFF
  3. #3 – Auto Mode ON
  4. #4 – Auto Mode OFF
  5. #5 – Mode 1: Relay ON for 5 seconds (adjustable with DLY=xx)
  6. #6 – Mode 2: Relay remains ON continuously
  7. #7 – Status Check: Get product status updates.

• Interactive Voice Response System (IVRS):

  • Use the mobile dial pad to control the pump with voice guidance.
  • Press 1 to 7 for corresponding actions.
  • Feedback and status updates via voice message.

How It Works:

1. Send Commands via SMS:
   Example: Send #1 to turn the pump ON.

2. Interactive Voice Control:

   • Call the device.
   • Follow voice prompts (e.g., Press 1 for Pump ON).
   • Receive confirmation and status feedback before the call disconnects.

3. Customizable Delay: Adjust relay delay timing using the command DLY=xx.




   Technical Specifications:

   • Operating Voltage: 12VAC/DC, 2 Amps

   • Relay Load: 230VAC, 5 Amps

Why Choose GSM Pump Controller?

• Convenient: Control your pump remotely, even from far-off locations.
• Secure: Only registered mobile numbers can access the system.
• Versatile Modes: Tailor pump operations with Auto and Manual modes.

Order Now and Simplify Your Pump Control Experience!
For inquiries, contact us at [ Whatsapp No  -  7259687103 ].

DEMO VIDEO HOW TO USE  SMS COMMANDS FOR MODEL 1

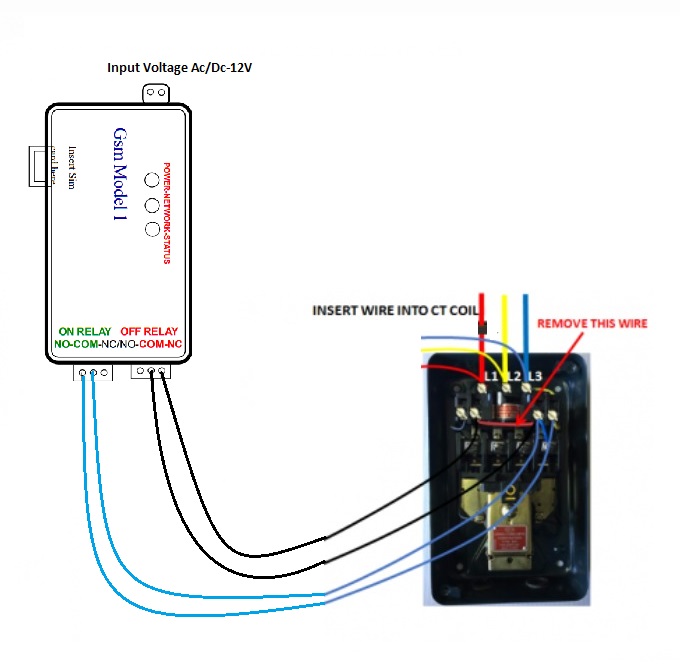

Video How to Interface GSM Motor Control with DOL Starter

NOTE  :  THIS PRODUCT DESIGNED FOR  INDIA ONLY ( CODE +91  ONLY   )-  FOR OTHER COUNTRIES PRODUCT WILL NOT RESPOND,  WE WILL DO ALTERATION  ON REQUEST
